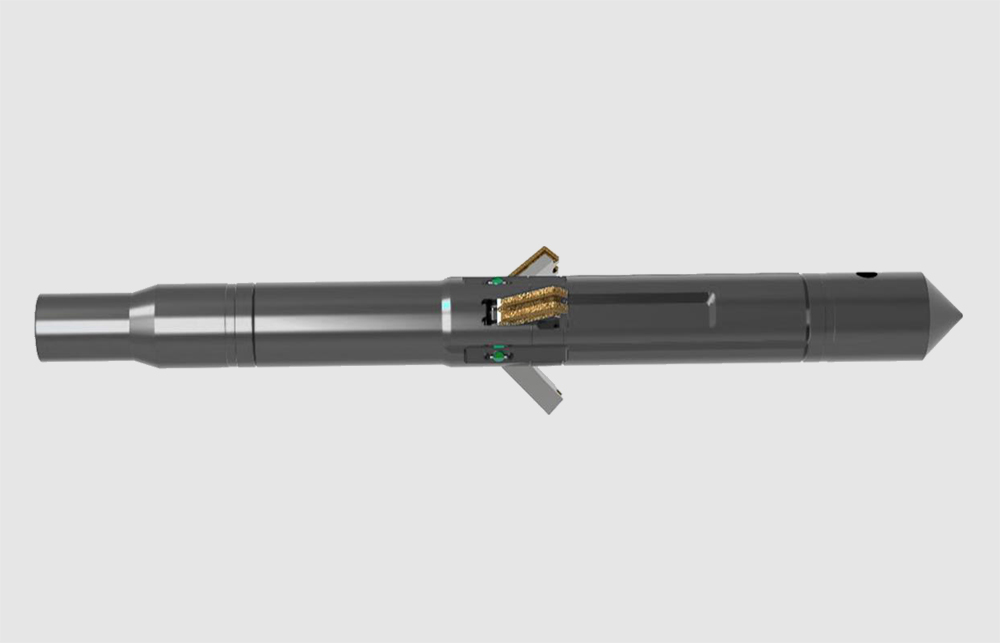

HYDRUALIC CASING CUTTER

Efficient Hydrualic casing cutter c/w clear indicator that the cut is complete. The Rock’s hydraulically actuated C-1 casing cutters cleanly cut a wide range of casing sizes and weights without special surface equipment, making them some of the most versatile and easy-to-operate tools of their kind. Cutting pipe of any size within range of the tool in use requires only a change of knife.

The rotary table, top drive, power swivel, or downhole motor can provide rotating power for these extremely rugged and efficient casing cutting tools.C-1 cutters can be run directly on the drill pipe or with drill collars; however, we recommend the use of drill collars in cutting operations and applications for which additional weight is needed, such as cutting from a floating vessel.

Features:

• C-1 casing cutters require no special surface equipment. Simplicity and a minimum of working parts make these cutters efficient, versatile, and rugged.

• Hydraulic actuation makes these cutters efficient and easy to use.

• The exclusive indicator bushing triggers a distinct pressure drop, providing clear indicators that the cut is complete.

• All principal parts are manufactured from special-quality, heat-treated alloy steel, which extends the tool life and keeps the tool intact under the toughest operating conditions. Inner parts are made from stainless steel for high corrosion resistance.

• Knives are dressed with finest-quality tungsten carbide available, resulting in an outstanding reputation for milling performance.

Application

• Cleanly cut a wide range of casing sizes and weights without special surface equipment.

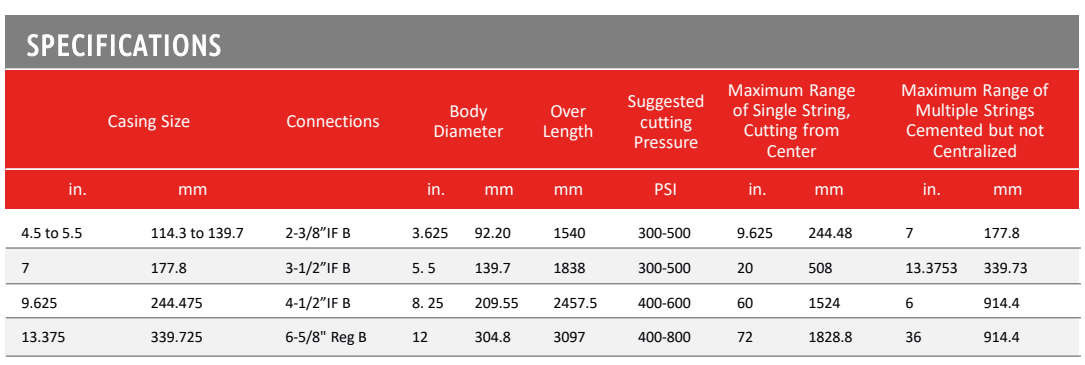

* Maximum Range of Multiple Strings Cemented but not Centralized, Cutting from Maximum Off-Center.
