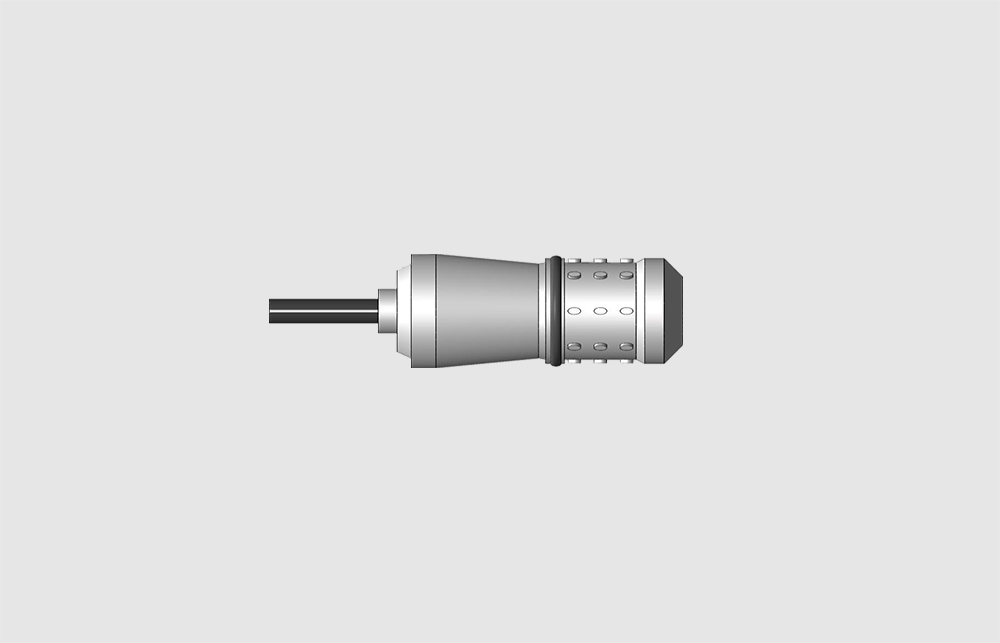

ALL-METAL DISSOLVABLE BRIDGE PLUG

Description

The dissolvable bridge plug is designed for temporary zonal isolation during multistage fracturing in oil and gas wells, featuring rapid self-dissolution in wellbore fluids after use. It is set using standard Baker 10#、20#setting tools connected via a special adapter sub. After being pumped to the designated setting depth, the setting tool's sleeve compresses the plug downward to set it. Upon successful setting, the shear pin breaks to release the setting tool from the plug.

Feature and Advantage

• Simple structure with reliable performance

• Fully dissolvable components (body, sealing element, and slips)

• Pressure rating up to 10,000 Psi(70MPa)

• Significant time savings, effectively reducing well development costs

• Adaptable to various well conditions with no drill-out required

• Customizable dissolution time to meet client specifications

Application

• Temporary sealing

• Staged fracturing
