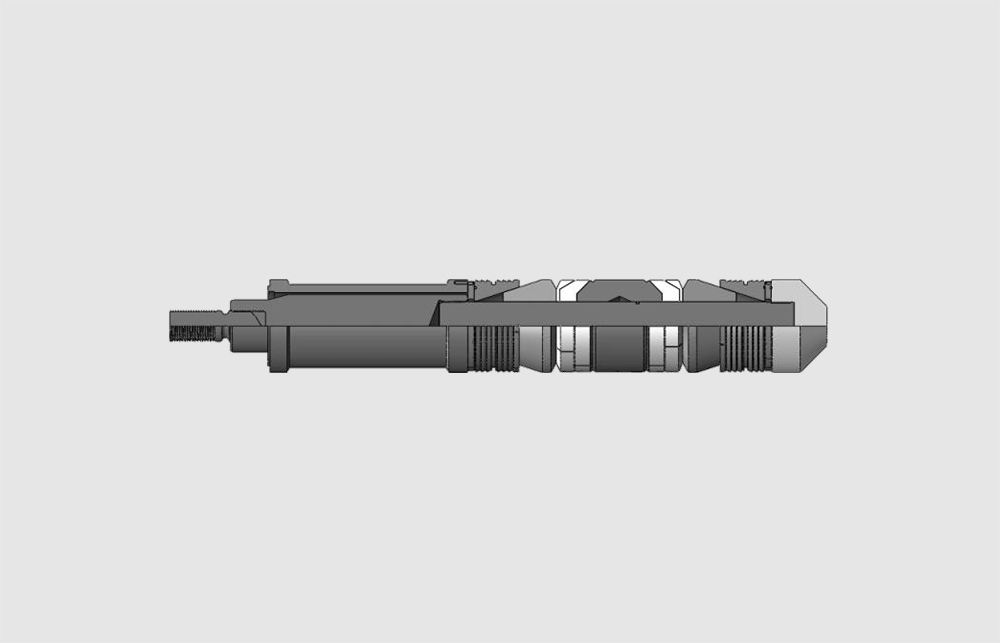

RWRP WIDE RANGE BRIDGE PLUG

Description

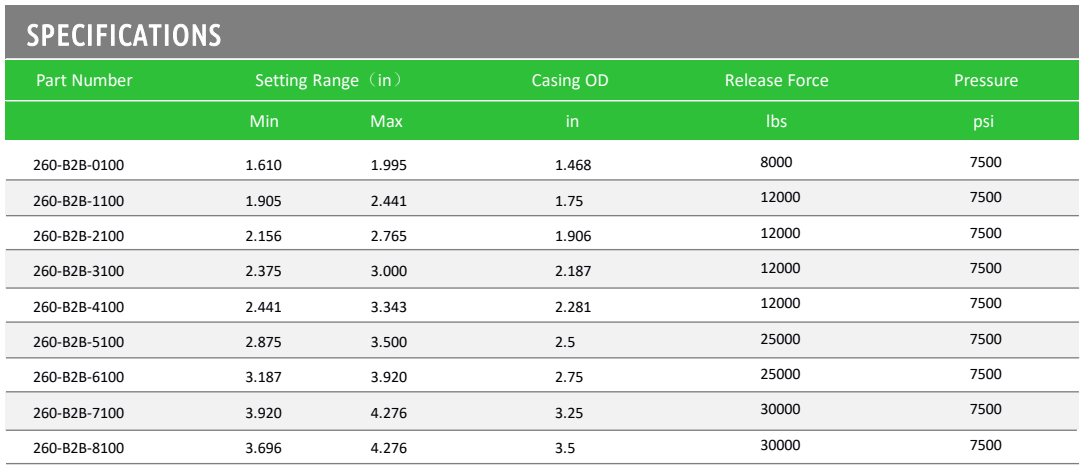

Wide Range Wireline Set Bridge Plugs are specially designed to run through tubing or restricted pipe and set securely in larger tubing or casing below. These bridge plugs will set securely in any hardness casing. A ratchet lock ring stores the setting force in the plug. The three piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out. They are available for 1.610" through 4.276" setting range.

Feature and Advantage

• Sets securely in any hardness casing, including premium grades

• Ratchet lock rings secure dynamic setting force

• Three piece packing element and rocker action metal back up rings combine for a superior seal

• Compact, easy running

• Can be set either with GO, Baker or Gearhart wireline setting tools

Application

• Temporary or permanent sealing

• Staged fracturing

Note:

(1) Max. temperature for standard tools is 250℉(135℃). Higher temperature ratings 350℉(177℃) or 400℉(204℃) are available upon request.

(2) Standard tools are good for up to grade 110 casing. Carbide inserted slips for casing grade 125 and above are available upon request.
