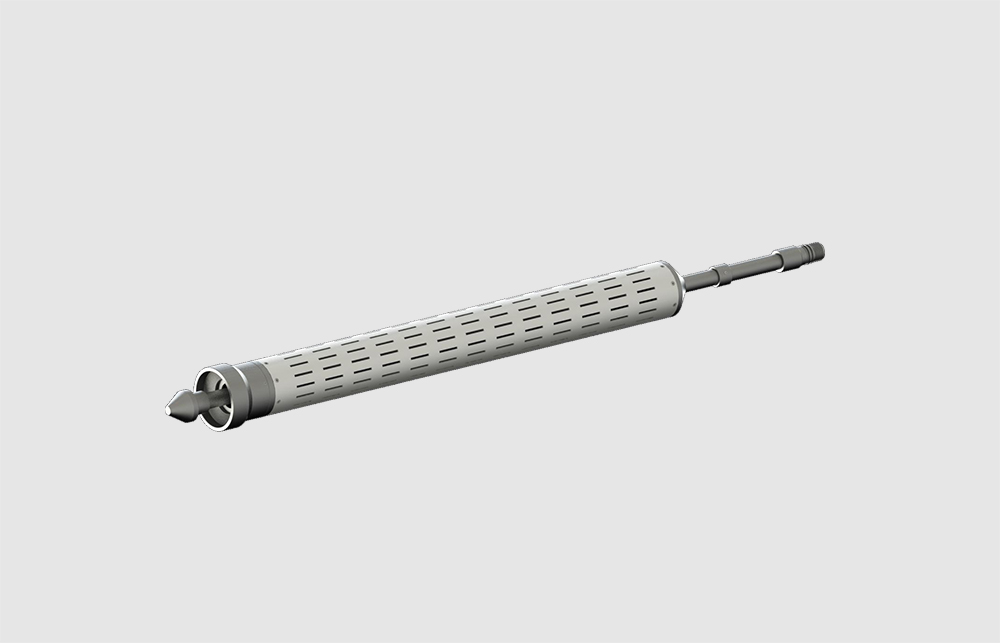

Junk BasketGauge Ring

The junk basket runs in the well, debris is collected from the bottom opening and trapped inside the tool. The gauge ring helps to scrape off any debris (such as cement or scale) on casing or tubing walls ensuring a clear, clean path is maintained. When the tool is moving back up, the basket is sealed against the rod trapping debris. The gauge ring size is always selected to be slightly larger than the outer diameter of any equipment subsequently run in hole.

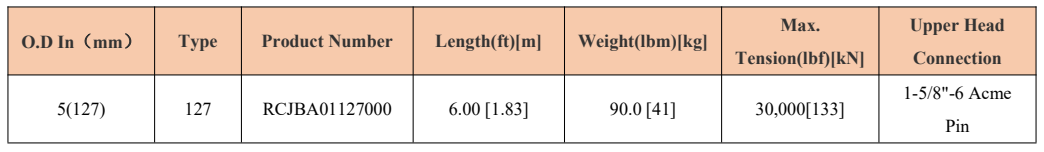

Junk Basket Technical Information

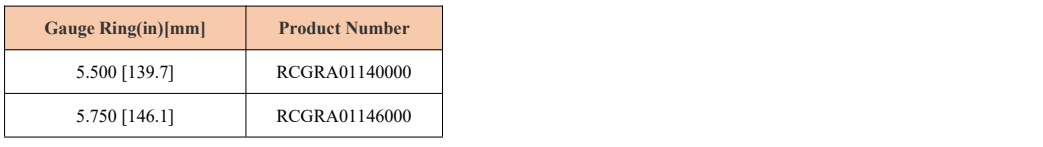

Gauge Ring Technical Information

Additional Instructions

Body Material: 4140

O-ring Material: Viton-70
